How To Install a Single Gate
Gate panel Gate pole/s (if selected) - unattached with fitting instructions. Hinges and hinge packers - supplied unattached with fitting instructions. Latch (if selected) - unattached with fitting instructions.
What You’ll Need
Tape measure and spirit level Drill and appropriate drill bits Fixings suitable for your surface (concrete, masonry, timber, steel) Shovel or pole hole digger (for in-ground installation option) Concrete mix (for in-ground installation option) Spanner/socket set Pencil or marker
Step 1: Measure & Position
Measure the opening width and confirm the gate size is correct. Determine your hinge side and swing direction. Mark the final position of the gate and poles on the ground and/or wall, allowing for the required clearance under the gate (40, 80 or 120 mm) to ensure the gate is installed at your desired height. If installing poles, please note they are 50 x 50 mm. Finally check all surfaces are level and plumb — accurate positioning here will make installation much easier.
Step 2: Install Gate poles
Option A: Install Poles into the Ground (concreted)
Concrete is not supplied and must be purchased separately. We recommend selecting your concrete based on ground/soil conditions — further guidance is here . Gate poles are typically supplied to match the height of the gate panel plus the nominated gap for clearance underneath the gate (40, 80 or 120 mm). For in-ground installations, poles include an additional 600 mm to allow embedding into the ground. Depending on your ground conditions and finished height requirements, poles can be cut down prior to installation. Always confirm final levels before cutting and concreting poles in place.
Dig pole holes to a suitable depth (typically 450–600mm, depending on ground conditions and gate height). Place the poles into the holes and brace temporarily. Check that the poles are perfectly plumb, correctly spaced, and vertically aligned for the gate panel. Pour concrete around the poles and allow it to cure fully before hanging the gate (follow concrete manufacturer’s curing times).
Option B: Fix poles to Ground & Side (Surface Mount)

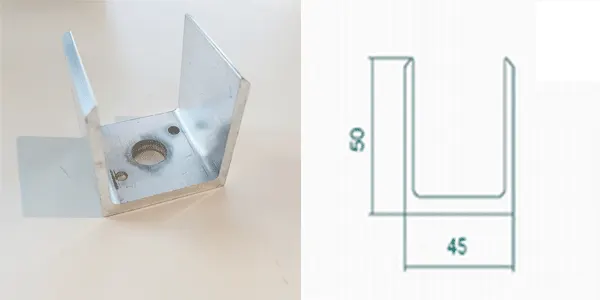

Concealed Post ConnectorsPosition the concealed post connector on the ground and mark the fixing points. Secure the concealed post connector to the ground using appropriate fixings for concrete, timber, or paving. Insert the pole over the concealed post connector and ensure it is plumb. Pre-drill fixing holes through the pole, then secure the pole to the side wall or structure using suitable screws/fixings for your wall or surface. You will need to drill a larger hole on the gate side of the pole and a smaller hole on the wall side, allowing the screw to pass through the pole and anchor into the wall. Hole sizes will vary depending on the screw or fixing selected to suit your wall or surface.

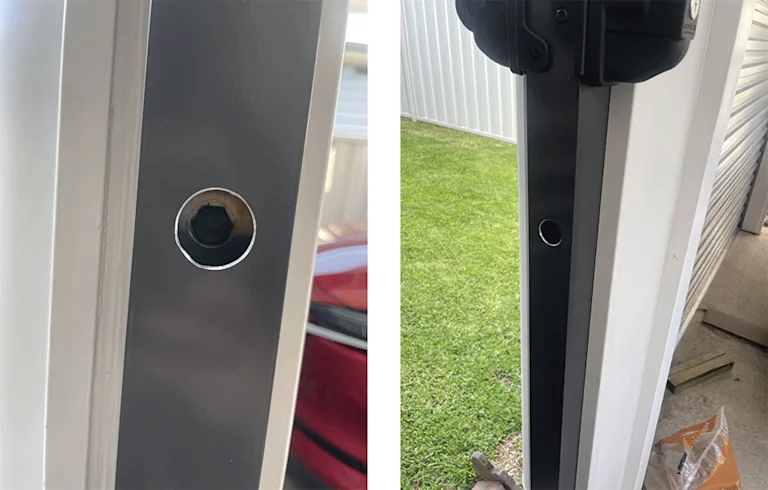

Gate Pole Drill HoleDouble-check alignment before fully tightening all fixings. Fit metal top cap to the top of the pole/s
Step 3: Install Hinges & Latch
Install hinges and latch at your desired height following the specific instructions included with your hinge and latch hardware, these vary depending upon your product selection. Ensure hinges are aligned and level to prevent gate sag or binding.
Step 4: Hang the Gate
Attach the gate panel to the hinges following the manufacturers installation instructions provided. Check swing clearance and ensure smooth opening and closing; adjust hinge positions if required. Tighten all fixings once the gate is operating correctly.
Step 5: Final Checks
Confirm the gate swings freely without rubbing. Check latch alignment and operation. Ensure all fixings are tight and secure. Re-check level and plumb after installation.
Important Notes
Always use fixings appropriate for your surface type. Concrete curing times must be observed before hanging the gate. If installing near edges of concrete or masonry, take care to avoid cracking. If you’re unsure at any stage, consult a qualified tradesperson.
